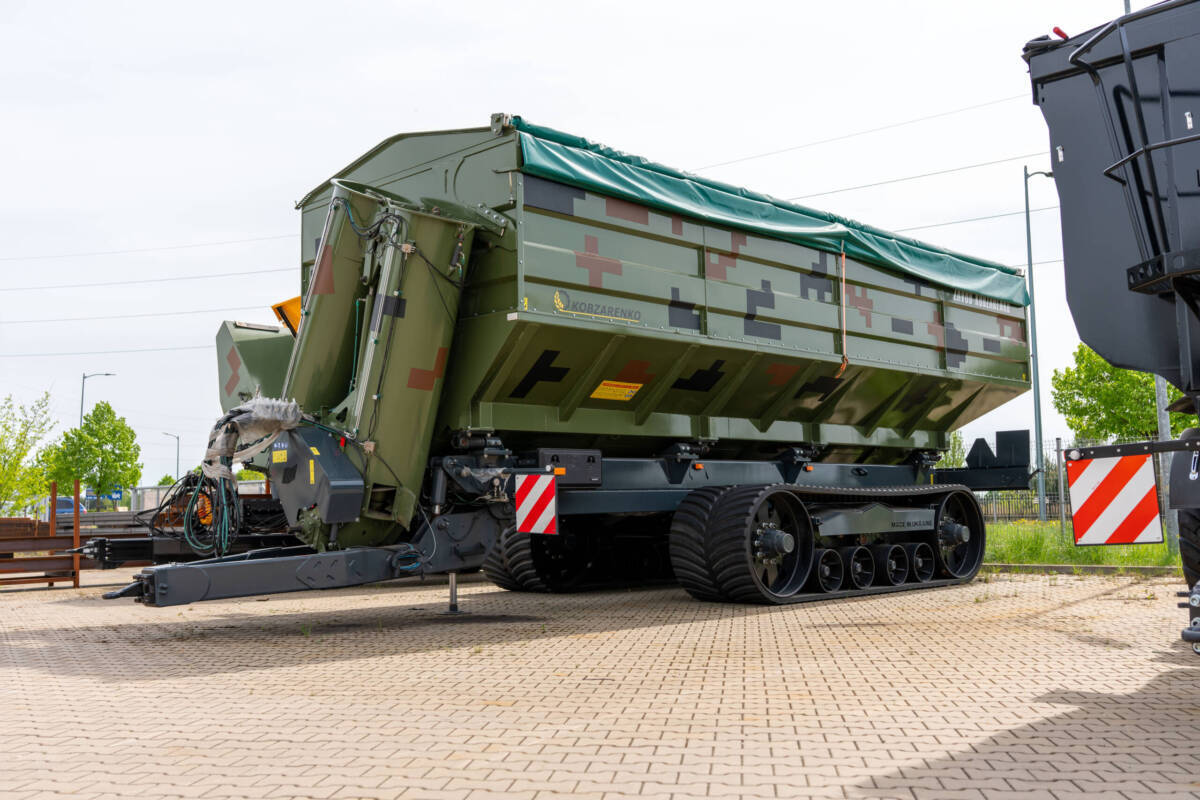

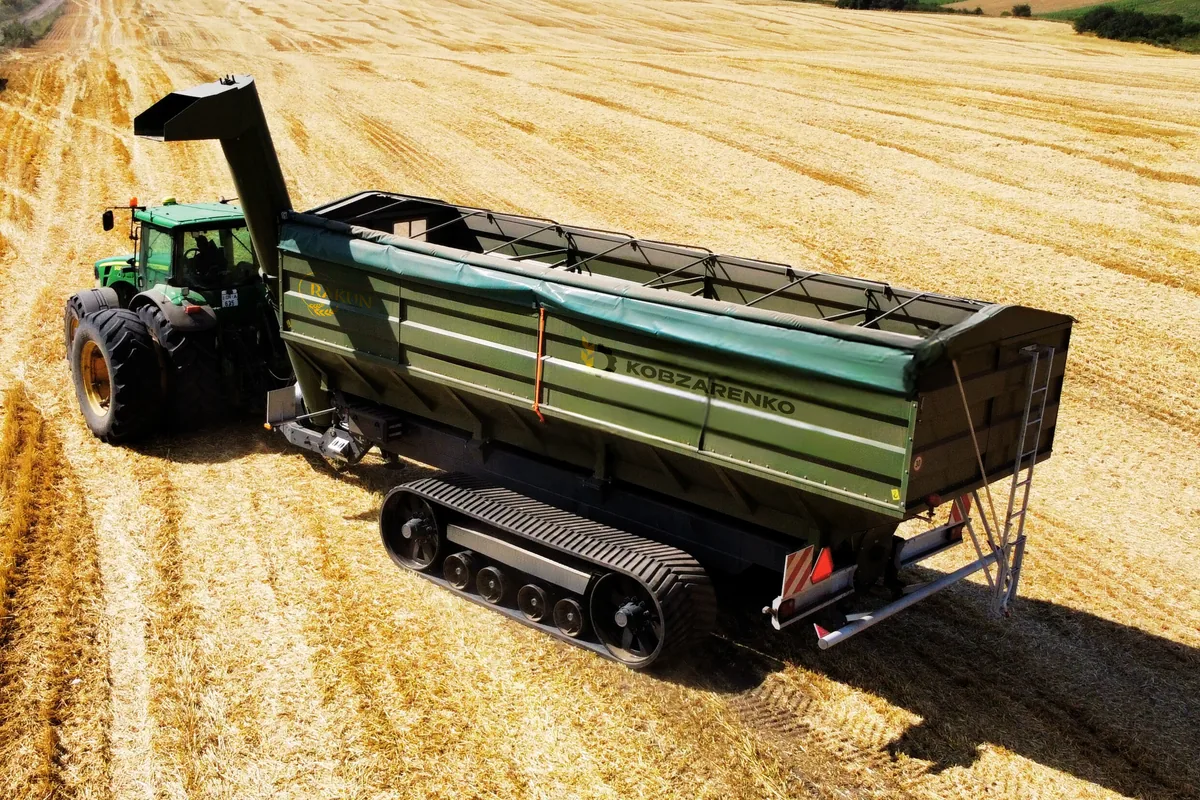

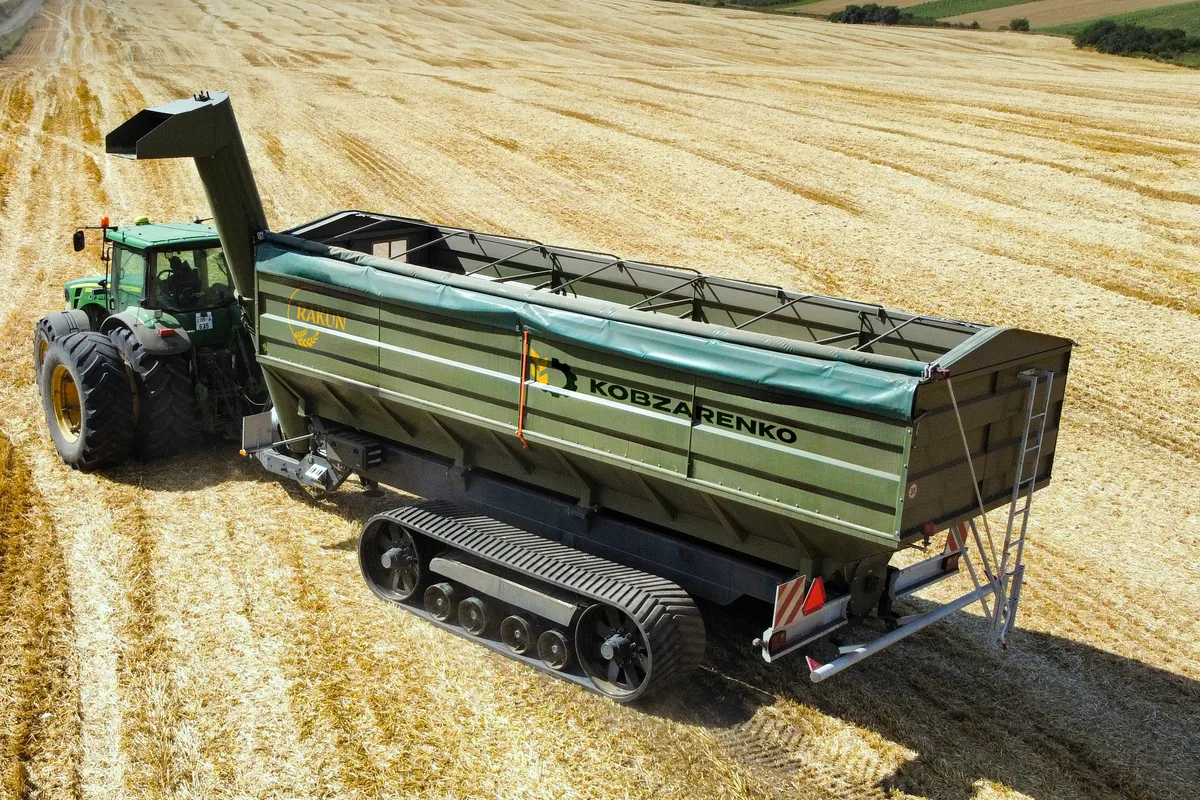

Transshipment trailers PBN-50 on tracks

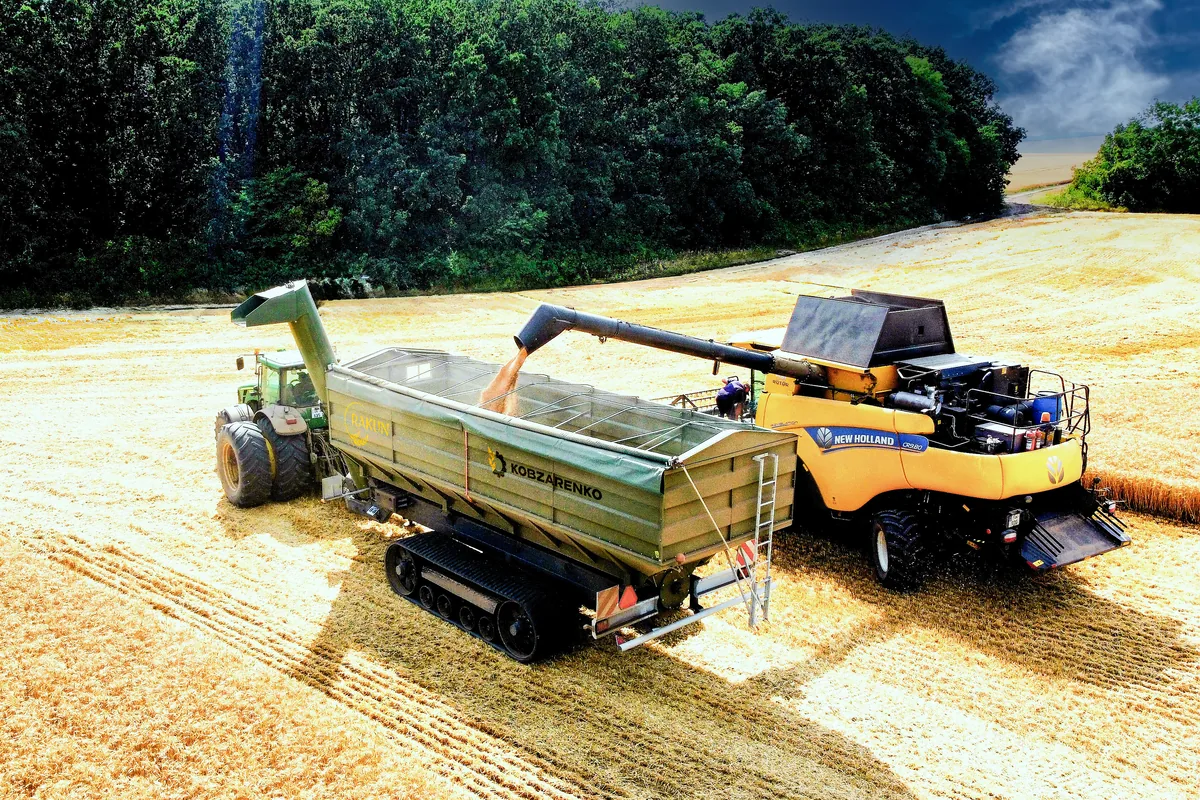

PBNs are used for:

– transport ziarna z kombajnu i przeładunek na samochody oraz inne środki transportu;
– załadunek siewników;
– napełnianie rękawów foliowych.

Principle of operation:

The horizontal auger located at the bottom of the hopper conveys the grain to the vertical discharge auger, by which the grain is transported to trucks or other means of transport. The augers are made of wear-resistant steel (production - Italy) and are perfectly centered during installation. As a result, the grain is not damaged.

Technical data
Technical data
Total weight, kg 54 500
Own weight, kg 16 500
Payload, kg 38 000
Dimensions
Trailer length, mm 11 450
Trailer height, mm 4 110
Width of trailer, mm 3 765
Hitch height, mm 500
Volume, m3 50
Auger diameter, mm 625
Height of the screw feeder, mm 4 300
Discharge rate, t/min 12; 25
Disassembling the unloading auger hydraulically
Tractor power requirement, hp 350-400

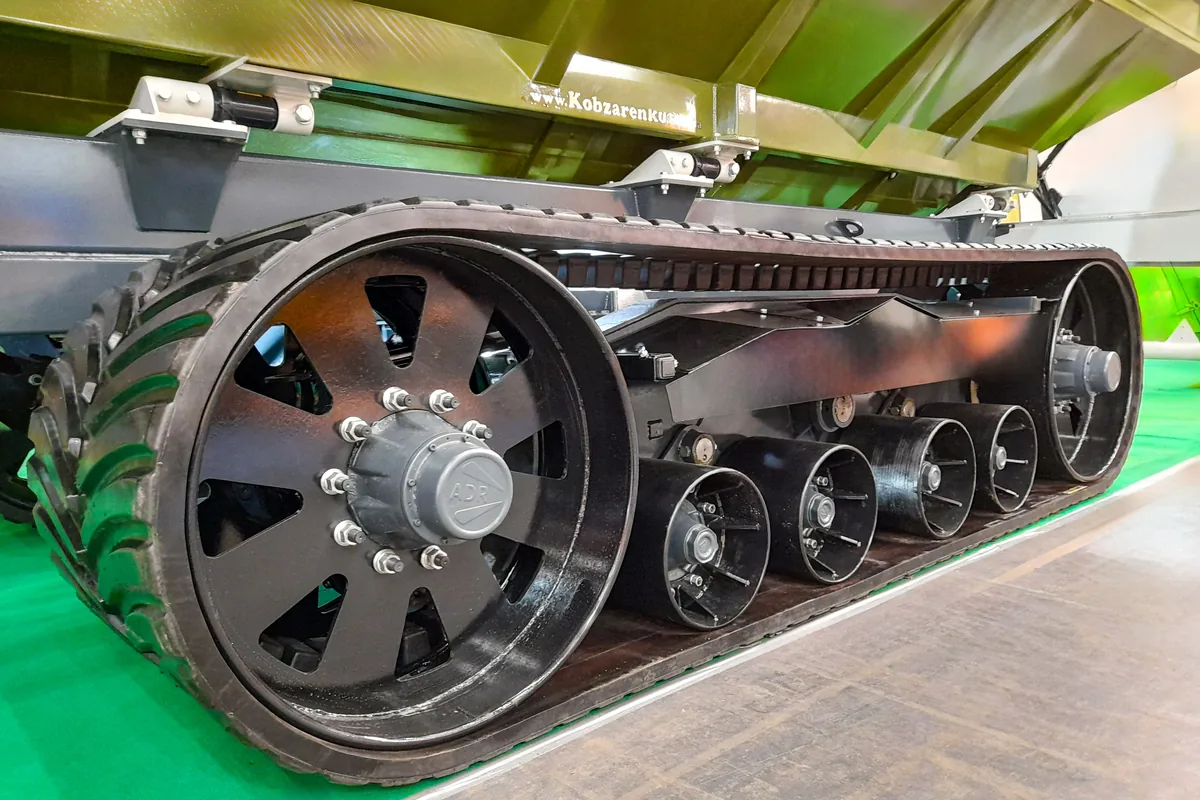

Tire size Gąsienica
Braking system pneumatic
Additional equipment:
Weighing system with GPS (GPRS)(Dinamica Generale, Italy); Tarpaulin system; PVC pipe (IPL Italy) Ø 300mm (400mm) 1.2m long for loading seeders; SHRP-5 auger extension, Ø 250mm, 5m long for loading seeders; Possible change of trailer chassis superstructure : mineral fertilizer spreader, water tanks, dump trailer on PBN chassis; WABCO automatic brake force equalizer; K80 ball hitch; Torsion axle; Hydraulically foldable auger tip; Hydraulic change of auger angle; Choice of trailer color; Tire size: 650/50 R22.5; 650/55 R26.5; 710/50 R26.5.
