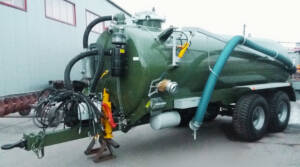

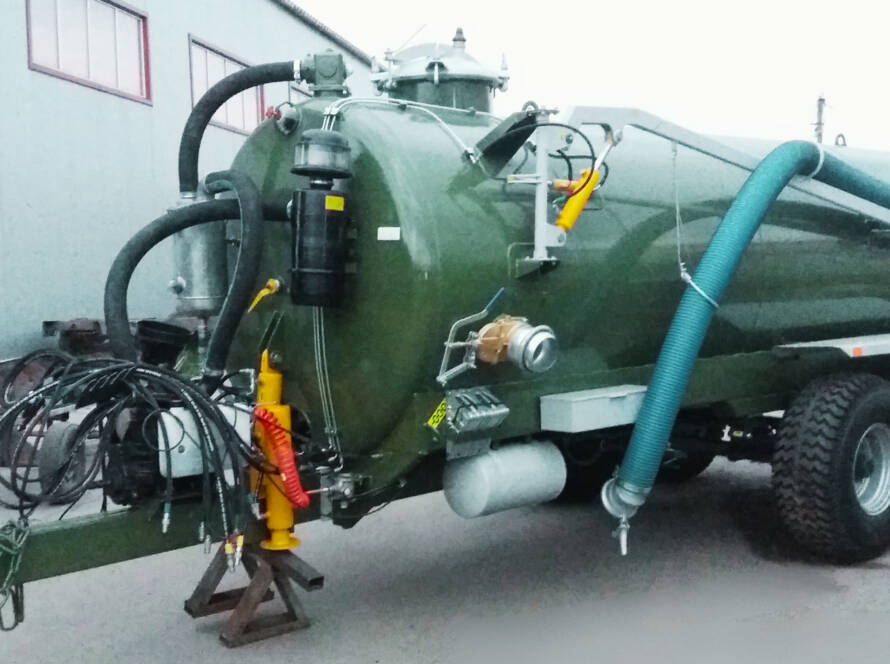

Tankers for liquid organic fertilizers, water and crop protection products VNC-12
Barrels are used for pumping, transporting and applying liquid organic fertilizers, water and crop protection products.
They significantly improve the efficiency of the sprayer by saving the operator time.
Technical data:
Oaxis (ADR, Italy);
Pronar discs (Poland);
Cardan shaft ( Bondioli&Pavesi, Italy);
Hydraulic drawbar support;
Eye hitch Ø40, 50, 90 mm (Scharmuller, Austria);
Tandem suspension on springs.
Technical data
| VNC-12 | |
| Volume, m3 | 12 |
| Total weight, kg | 16 000 |
| Tanker dimensions: | |
| Diameter, mm | 1700 |
| Trailer length, mm | 5820 |
| Number of axles, pcs. | 2 |
| Tire size | 427/70-18 |
| Tractor power requirement, hp | 120-150 |
| Dimensions, mm | |
| Trailer length, mm | 7 525 |
| Width of trailer, mm | 2 535 |
| Trailer height, mm | 2 830 |
Additional equipment:
- Galvanised or stainless steel barrel;
- Hydraulic agitator;

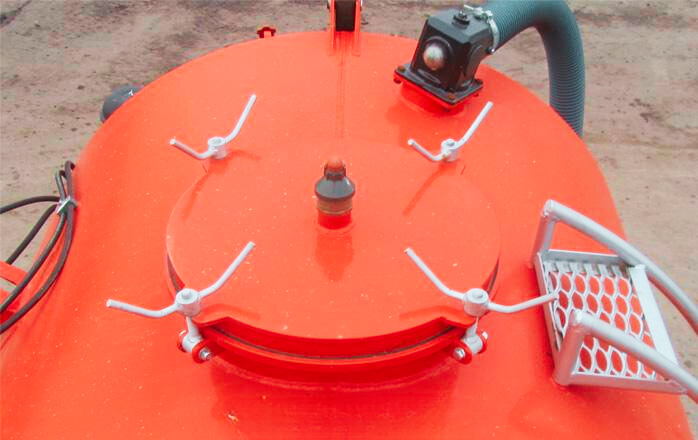

- Hydraulically opening top cover;
- Liquid organic fertiliser applicator;
- Hydraulic spreader;
- Hydraulic manipulator with PVC hose for pumping;
- Multi-connector for docking of 5 pairs of hydraulic outlets;
- Centrifugal pump, vacuum pump;
- Applicator.
Fertiliser application methods:
- Superficial, using a spreader spread width: 10-12 m;
- Superficial, irrigation by means of a nozzle up to 50 m;
- Precise, superficial, without burning the leaves using an applicator with spill hoses;
- Application with a tine cultivator;
- Application with disc cultivator.
