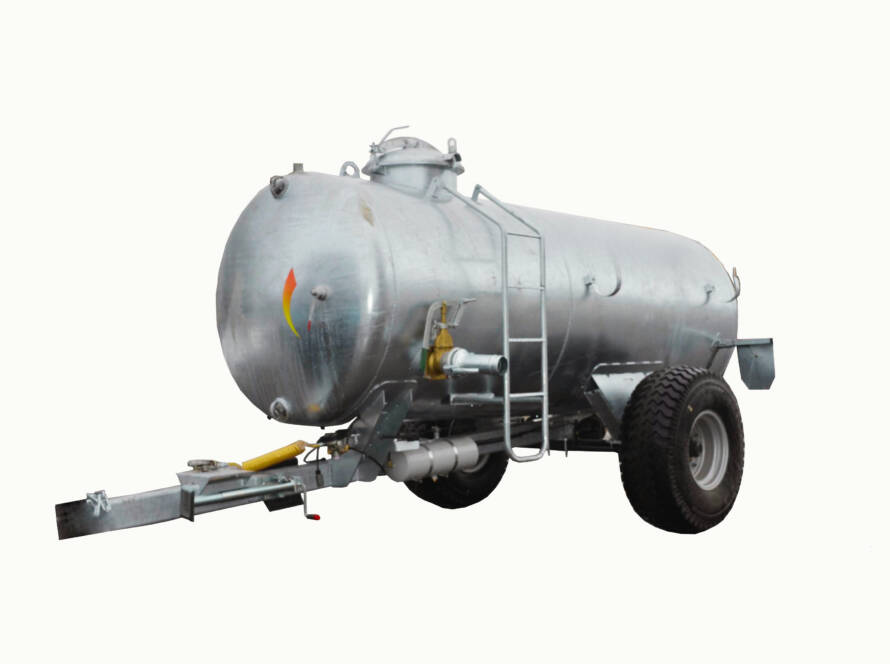

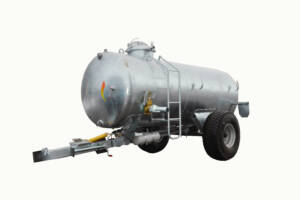

Tankers for liquid organic fertilizers, water and crop protection products VNC-6
Barrels are used for pumping, transporting and applying liquid organic fertilizers, water and crop protection products.
They significantly improve the efficiency of the sprayer by saving the operator time.
Characteristics:
Oaxis (ADR, Italy);
Pronar discs (Poland);
Cardan shaft ( Bondioli&Pavesi, Italy);
Hydraulic drawbar support;
Eye hitch Ø40, 50, 90 mm (Scharmuller, Austria);
Rigid suspension.
Technical data
| VNC-6 | |
| Volume in m3 | 6 |
| Axles, pcs. | 1 |
| Tire size | 425/70-18 |
| Total weight, kg | 8 000 |
| Tank dimensions, mm | |
| Diameter | 1400 |
| Trailer length, mm | 3900 |
| Dimensions, mm | |
| Trailer length, mm | 5775 |
| Width of trailer, mm | 2435 |
| Trailer height, mm | 2645 |
| Tractor power requirement, hp | 82 |
Additional equipment:
- Galvanised or stainless steel barrel;
- Hydraulic agitator;
- Hydraulically opening top cover;
- Liquid organic fertiliser applicator;
- Hydraulic spreader;
- Hydraulic manipulator with PVC hose for pumping;
- Multi-connector for docking of 5 pairs of hydraulic outlets;
- Centrifugal pump, vacuum pump;
- Applicator.
Fertiliser application methods:
- Superficial, using a spreader spread width: 10-12 m;
- Superficial, irrigation by means of a nozzle up to 50 m;
- Precise, superficial, without burning the leaves using an applicator with spill hoses;
- Application with a tine cultivator;
- Application with disc cultivator.
