Grain handling machines BNP-3 BNP-3E

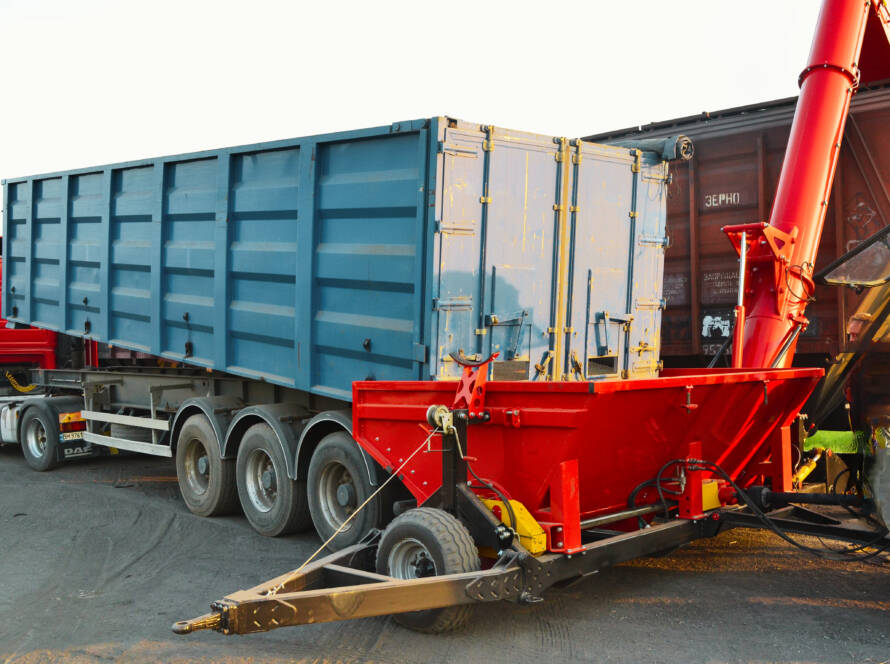

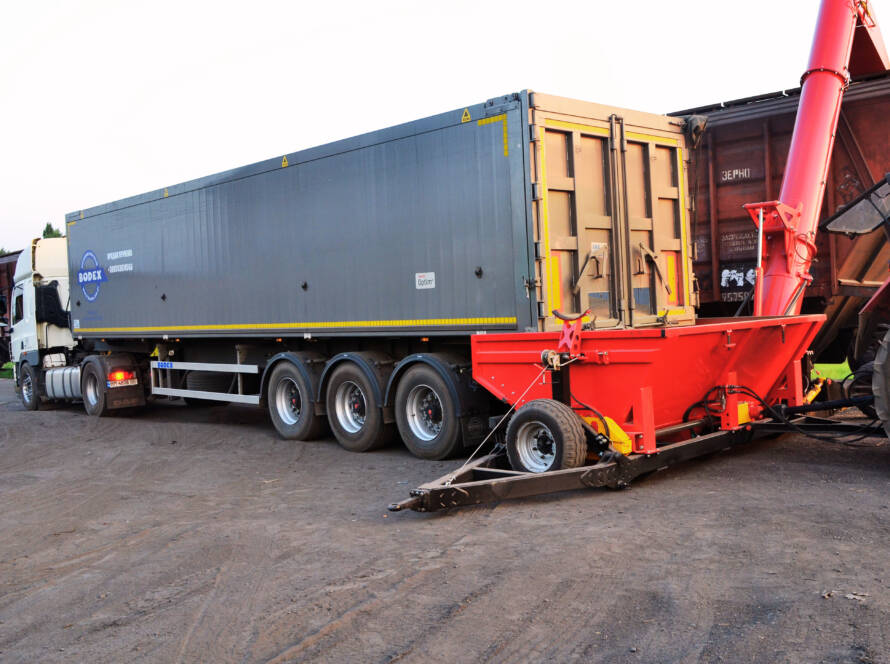

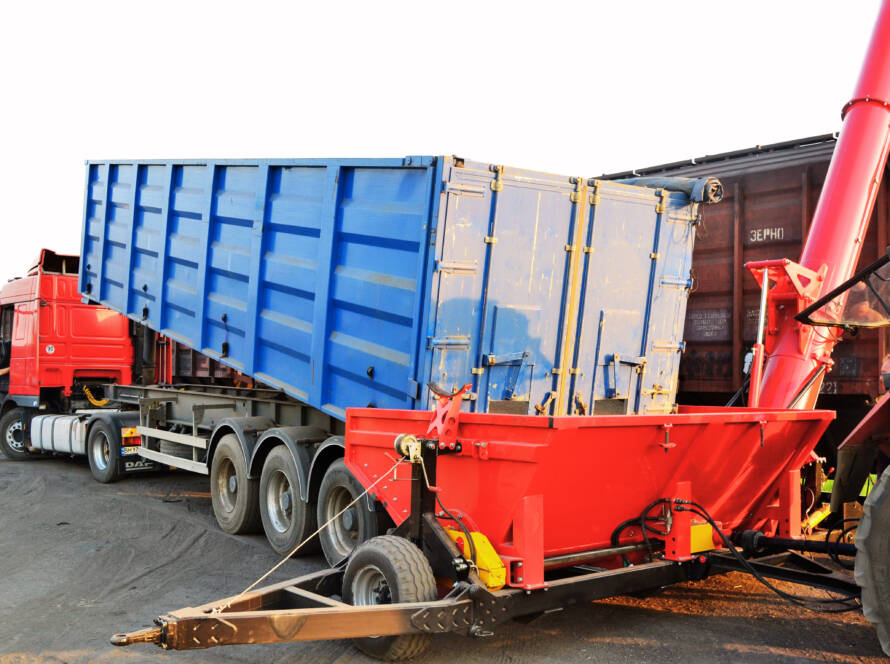

Ground transloading container

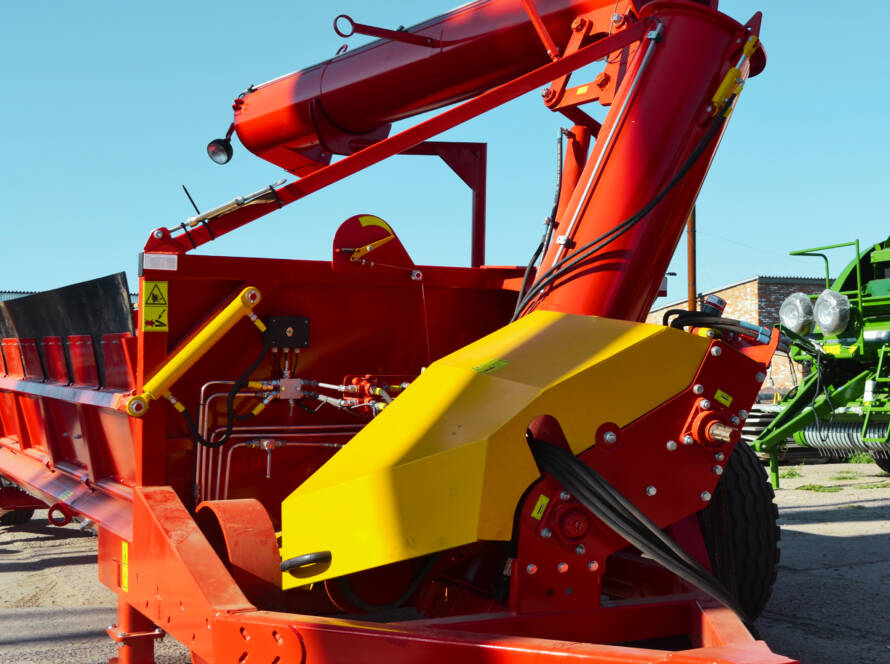

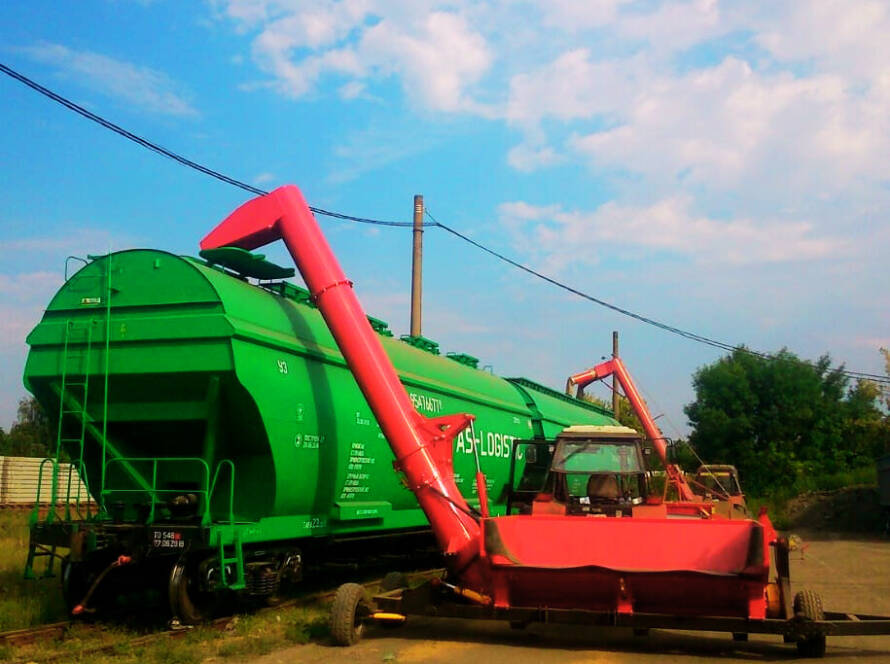

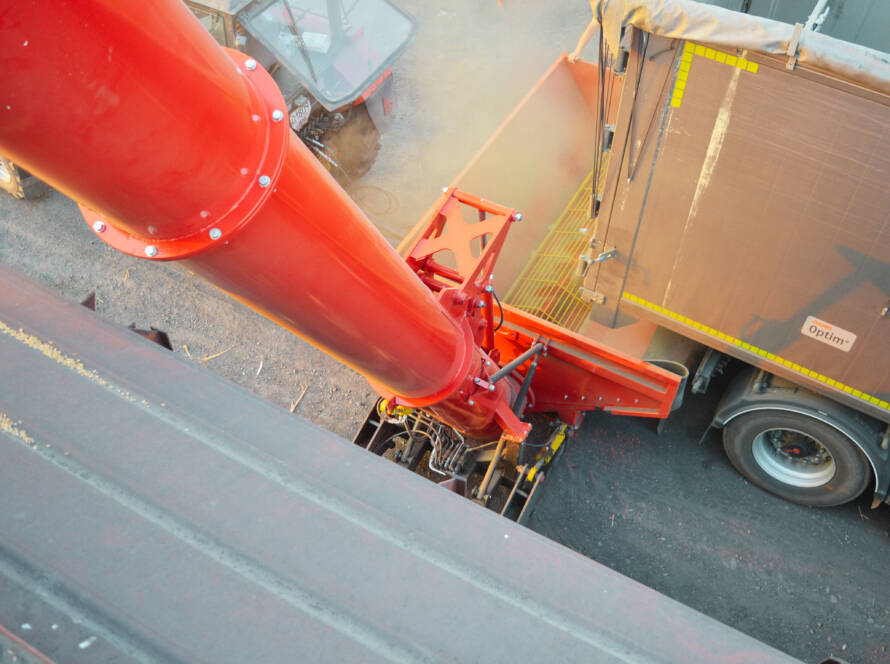

The horizontal feeding auger transfers the grain to the unloading vertical auger, which reloads the grain to another means of transport. The auger's spirals are made of special Italian-made steel, which are perfectly centered before assembly so that the grain is not damaged. The machine is driven from the tractor's PTO or by a 380 V electric motor.

Przeznaczony do przeładunku: zboża, słonecznika, rzepaku, nawozów mineralnych.

Technical data

Characteristics	BNP-3	BNP-3 E
Auger diameter, mm	500	500
Capacity, t/h	250	250
Unloading height, mm	5 500	5 500
Оvolume of container, m3	2,9	2,9
Drive	from the tractor's PTO	el.motor + from tractor PTO
Tractor power requirement, hp	82	82
Unloading from a vehicle	parallel to the wagon	parallel to the wagon
Container dimensions:
Trailer length, mm	3 000	3 000
Width of trailer, mm	2 125	2 125
Trailer height, mm	860	860

Technical data:

WSVertical scroll Ø 400/500 mm;
horizontal auger Ø 300 mm;
Two metering shaft gates;
Hydraulic mechanism for switching the container from the transport position to the working position;
Wheels 10.0/75 - 15.3
Hydraulic sideboard with rubber seal;
Gimbal shaft (Bondioli & Pavesi, Italy);
Hitching wheel Ø 40, 50 or Ø90 mm (Scharmuller, Austria);
