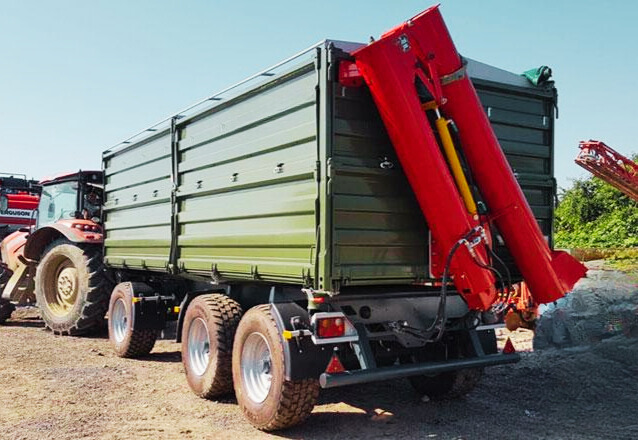

Tractor trailers 3ТSP-24
The 3TSP-24 tractor trailer is designed to carry cargo.
Characteristics:
- Pneumatic braking system;
- Axles (ADR Italy);
- Scharmuller hitching ring (Austria);
- Hydraulic drawbar support;
- Pronar discs (Poland);
Additional equipment:
- Metal extensions to increase volume;
- Platform system;
- Possibility to change wheel size;
- GRSH folding auger;
- Mixed brake system;
- Choice of colour.
Technical data
| Discharge sides | 3 |
| Own weight, kg | 6 000 |
| Payload, kg | 18 000 |
| Axles, pcs. | 3 |
| Dimensions of box, mm | |
| Trailer length, mm | 6 380 |
| Width of trailer, mm | 2 270/ 2 310 |
| Trailer height, mm | 800 |
| Volume with extension, m3 | 24 |
| Tire size | 385/65 R22.5; 445/65 R22,5 |
| Tractor power requirement, hp | 130 |
| Dimensions, mm | |
| Trailer length, mm | 8 220 |
| Width of trailer, mm | 2 550 |
| Trailer height, mm | 3 200 |
| Total weight, kg | 24 000 |
