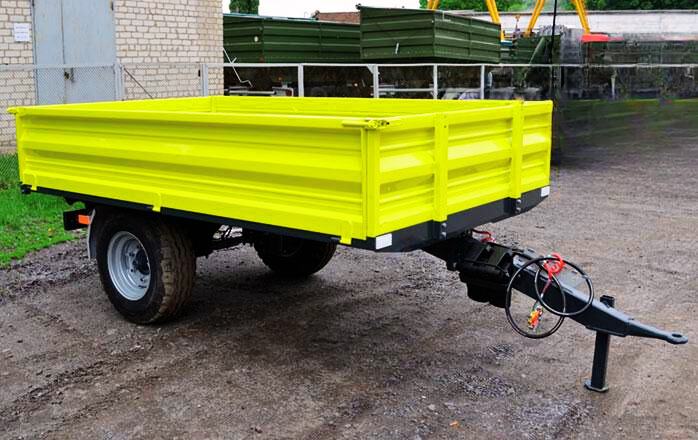

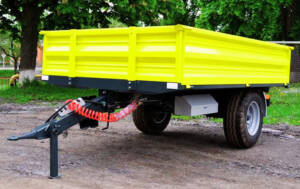

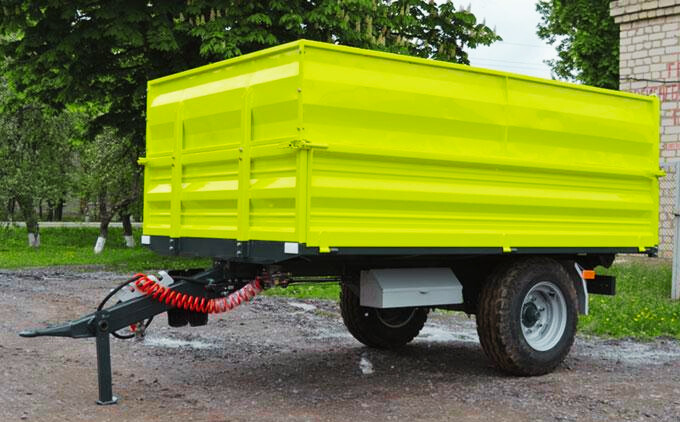

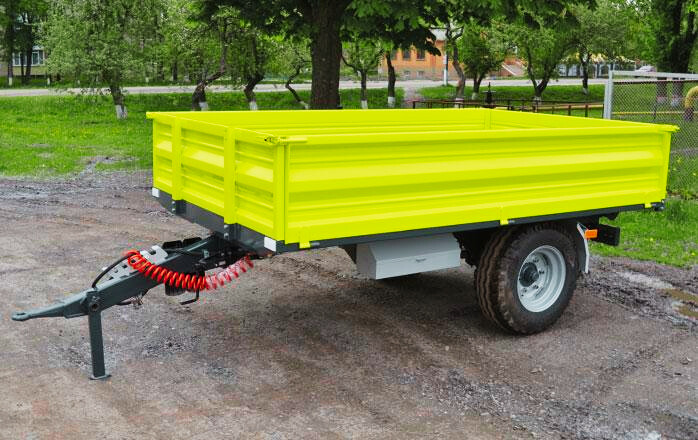

Tractor trailers TSP-3t
Tractor trailers TSP-3t
Characteristics:
- Pneumatic braking system;
- Axles (ADR Italy);
- Scharmuller hitching ring (Austria);
- Hydraulic drawbar support;
- Pronar discs (Poland);
Additional equipment:
- Metal extensions to increase volume;
- Platform system;
- K80 ball attachment;
- Possibility to change wheel size;
- GRSH folding auger;
- Mixed brake system;
- Choice of colour.
Technical data
| Total weight, kg | 3 300 |
| Own weight, kg | 800 |
| Payload, kg | 2 500 |
| Wysokość platformy, mm | 820 |
| Axles, pcs. | 1 |
| Dimensions of box: length х width х height, mm | 2890х1740х500 |
| Trailer dimensions: length х width х height, mm | 4000х1890х1360 |
| Volume, m3; with extensions, m3 | 2,6/5,2 |
| Tire size | 10,0/75-15,3 |
| Tractor power requirement, hp | 34 |
| Discharge sides | 3 |
