Straw harvesting and transport technology PT-16 Kvadro

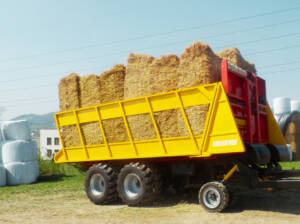

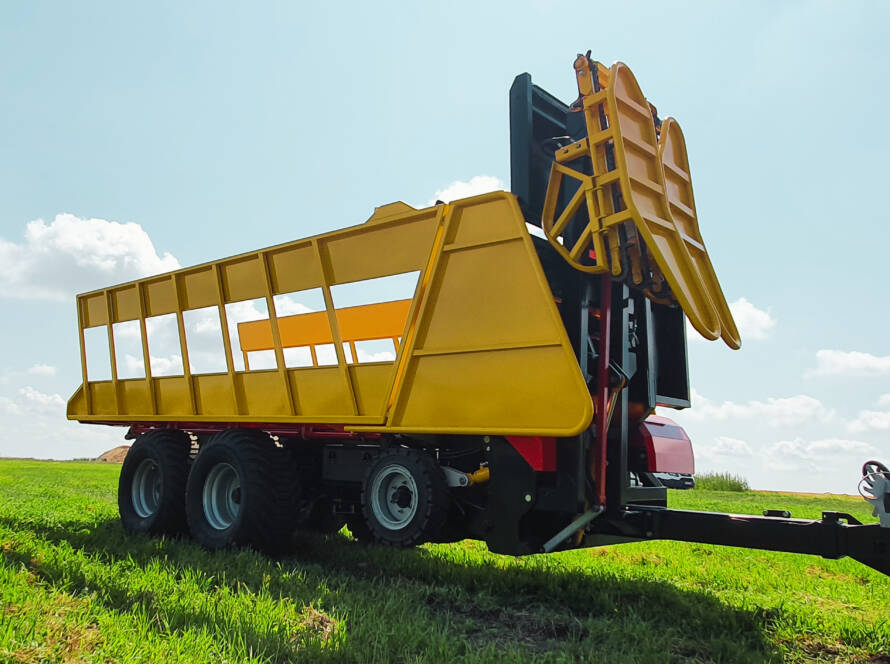

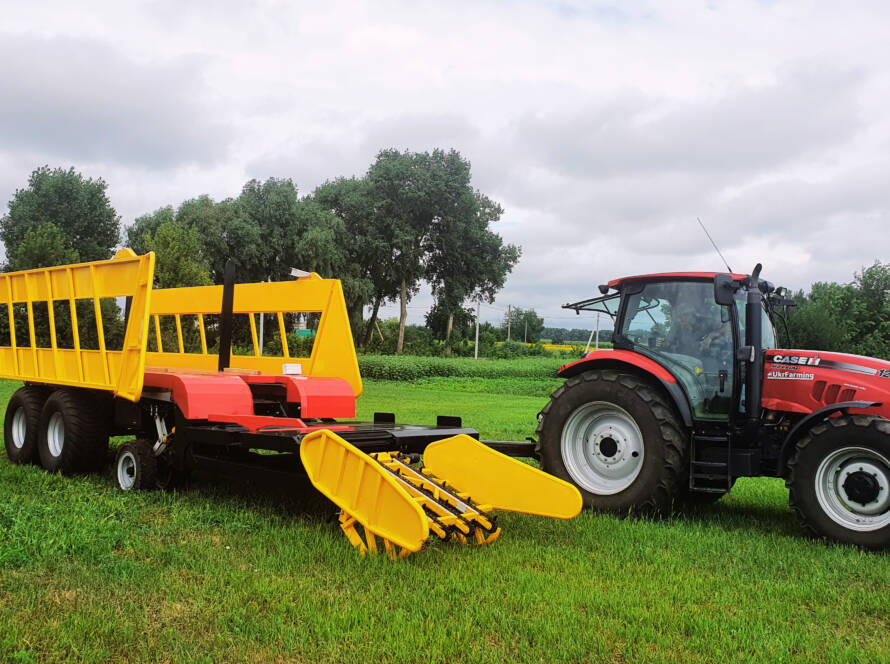

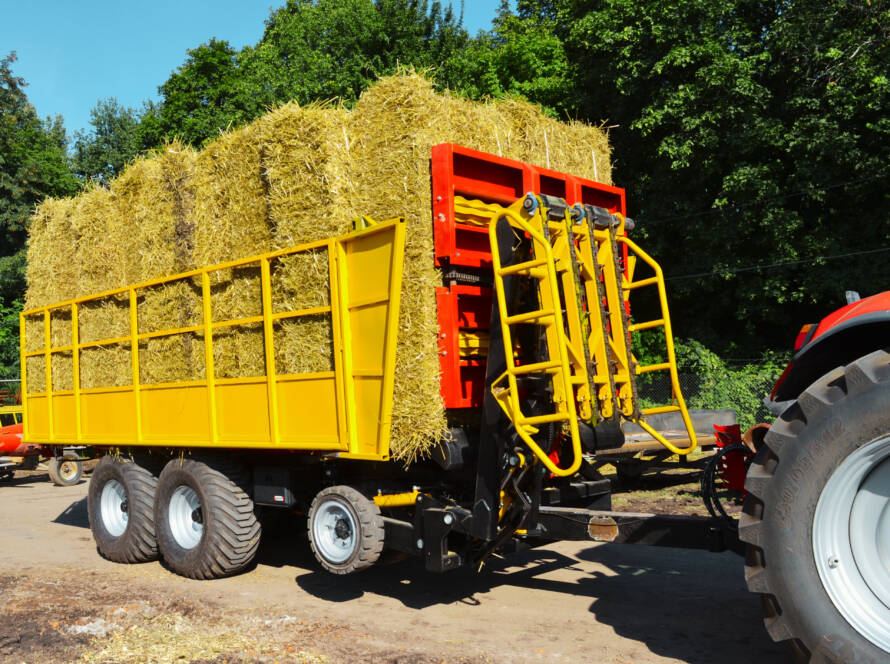

Self loading bale trailer
Characteristics:
- ADR axles (Italy);
- Pronar discs (Poland);
- Scharmuller hitching wheel (Austria);

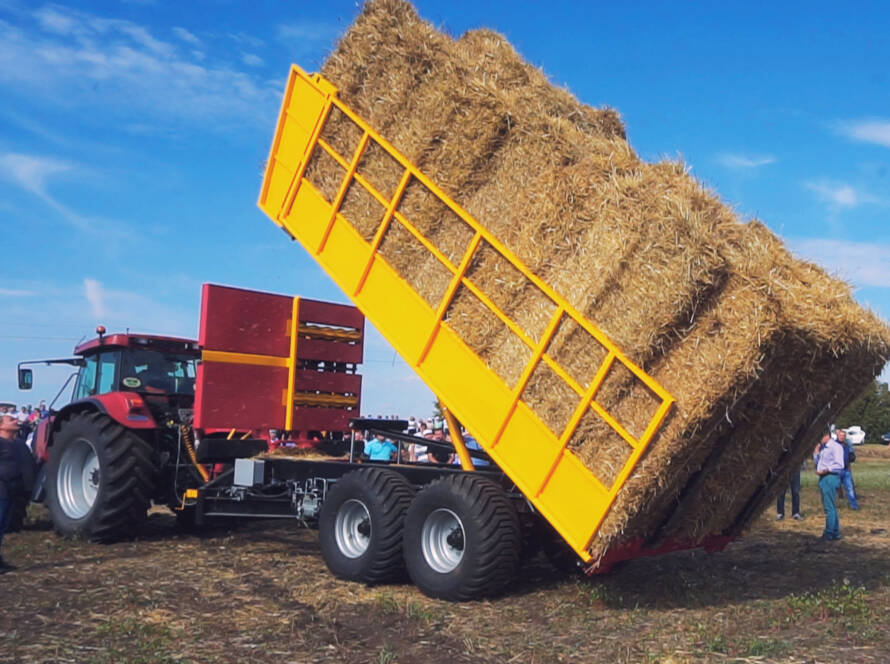

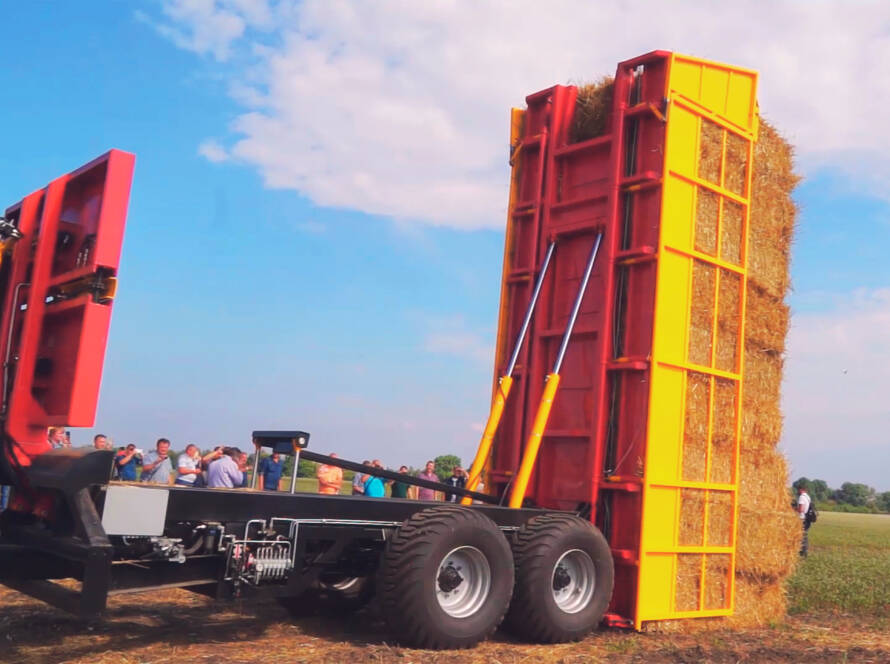

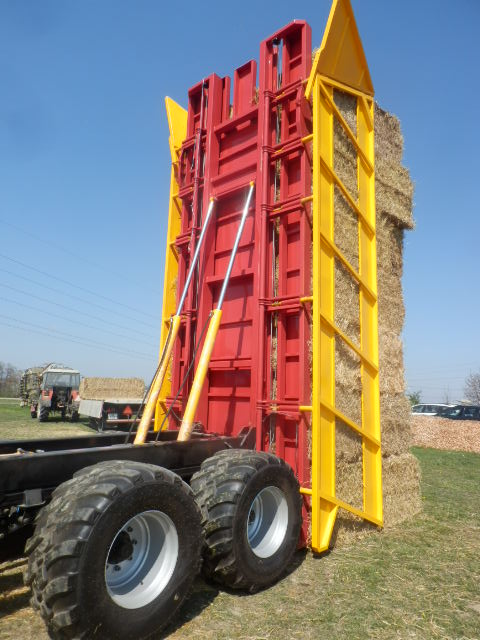

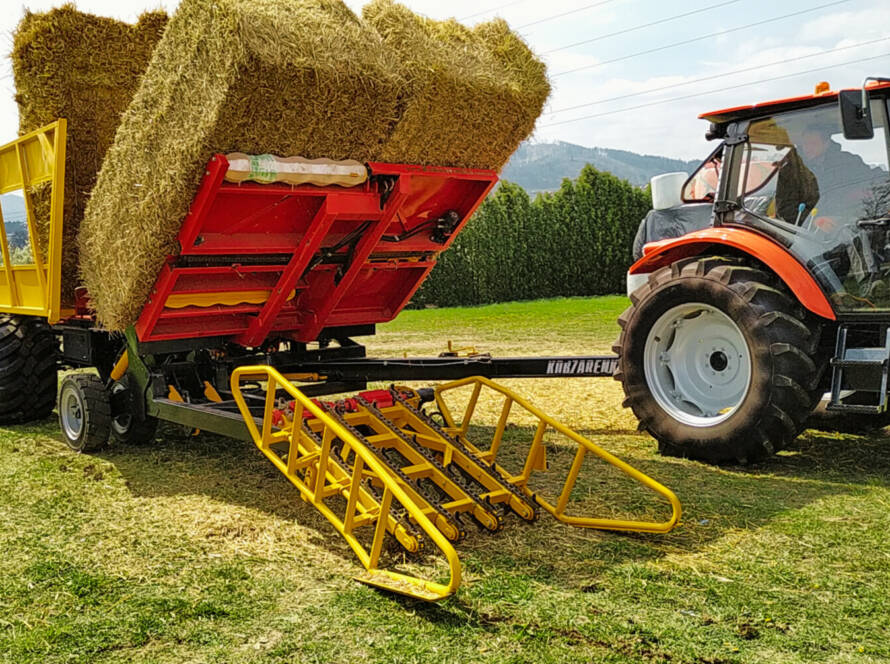

- Tipper trailer: loading table with hydraulic system;

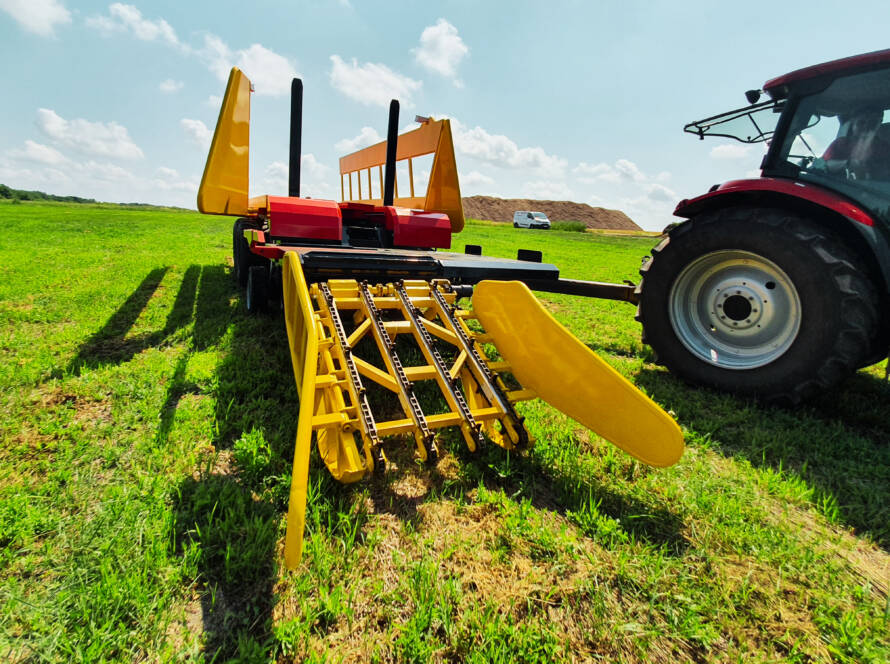

- Chain carrier with hydraulic drive;

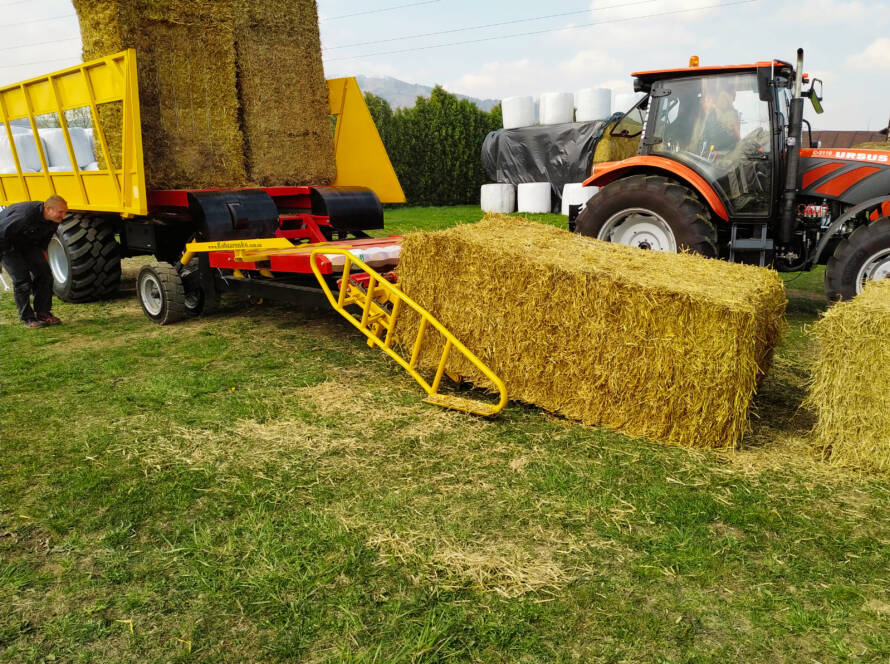

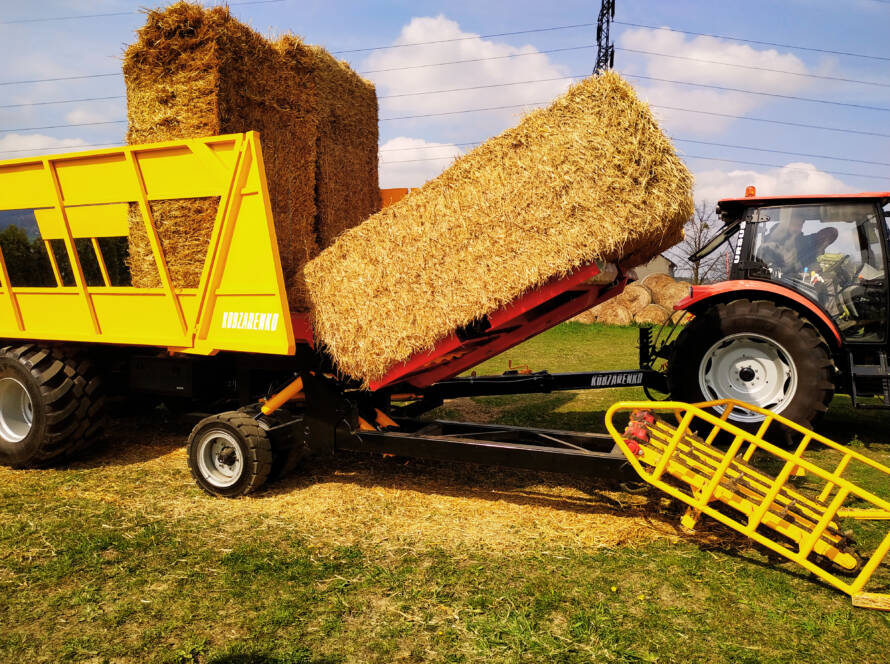

- Automatic loading system with the ability to manually control bale loading without engaging additional equipment;
Technical data
| PT-16 KVADRO | |
| Bale diameter/size, m | 2,4х1,2х0,9-14szt. (750 kg); 2,4х1,2х0,8–16szt. (625 kg); 2,4х1,2х0,7–18szt. (550 kg) |
| Axles, pcs. | 2 |
| Tire size | 550/60-22,5 |
| Tractor power requirement, hp | 200 |
| Payload, kg | |
| Payload, kg - handle | 750 |
| Platform (depending on tires) | 10 000 |
| Weight, kg | |
| Weight, kg: - own | 8 700 |
| Weight, kg: - total | 18 700 |
| Dimensions, mm | |
| Trailer length, mm | 8 930 |
| Width of trailer, mm | 2 550 |
| Trailer height, mm | 3 670 |
| Number of bales, pcs. | 14/16/18 |
