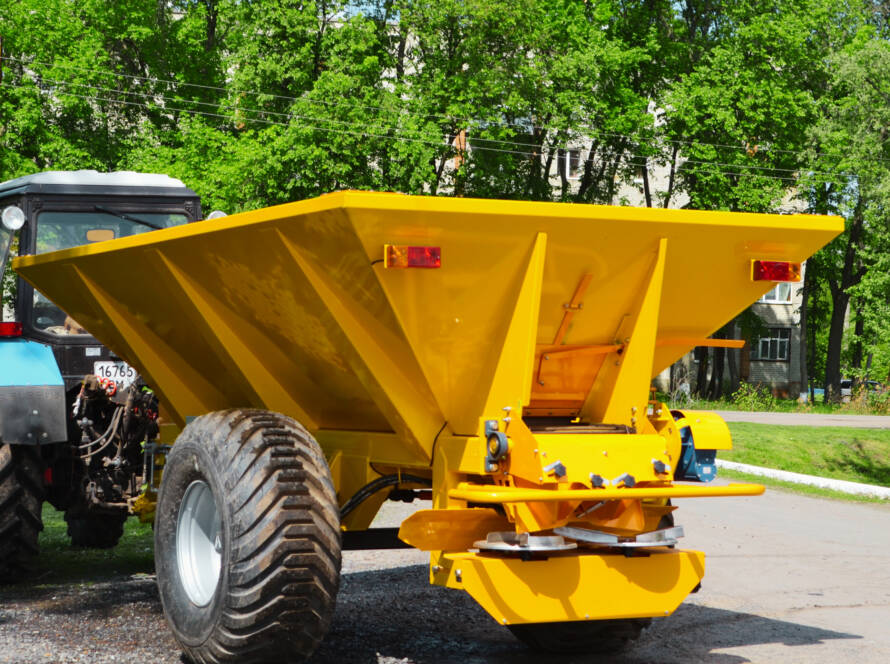

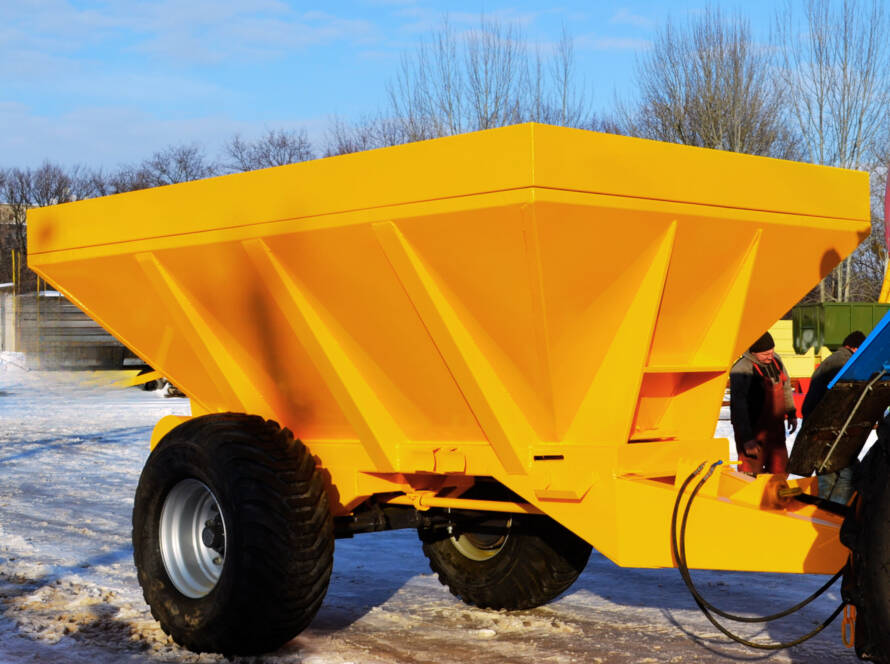

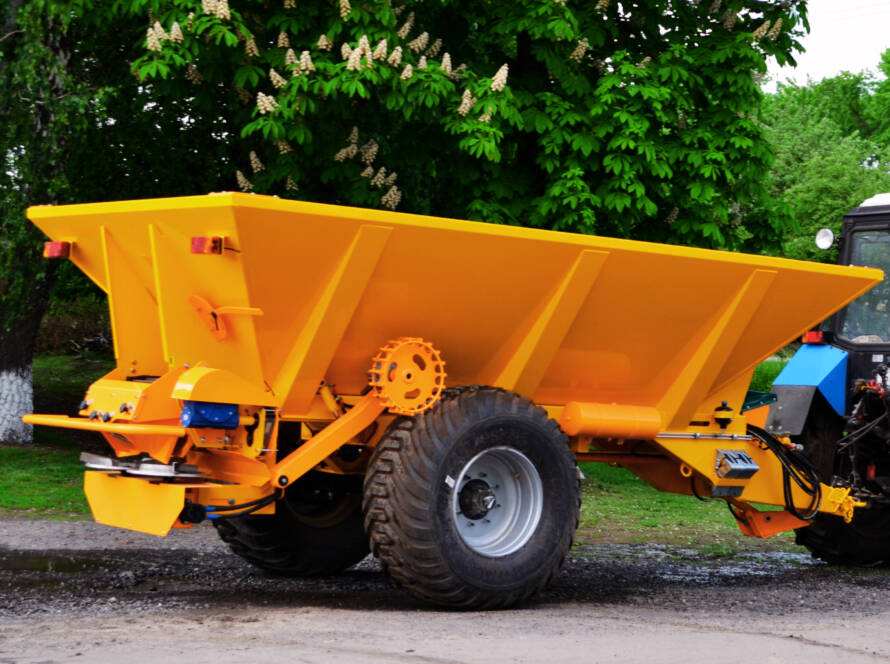

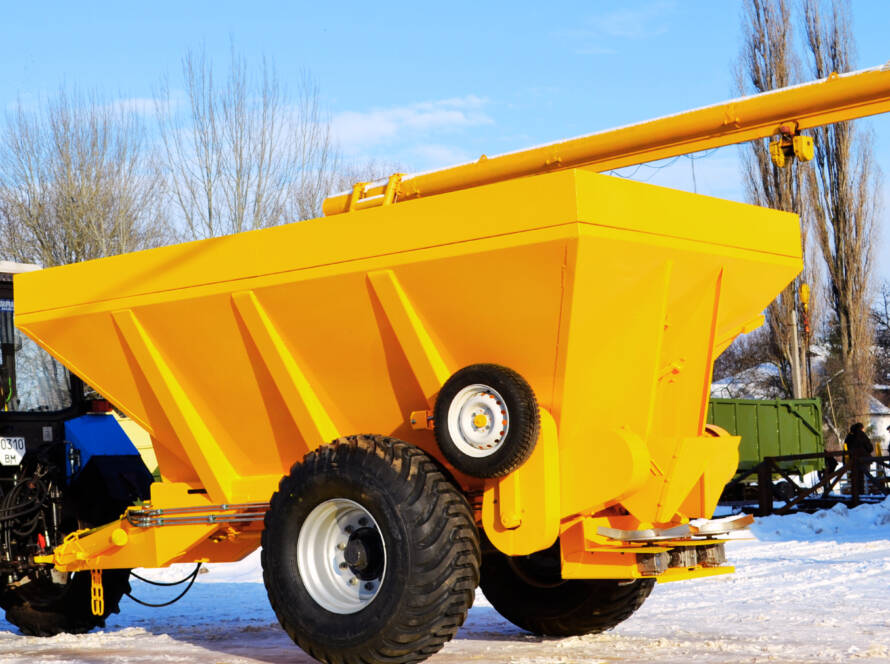

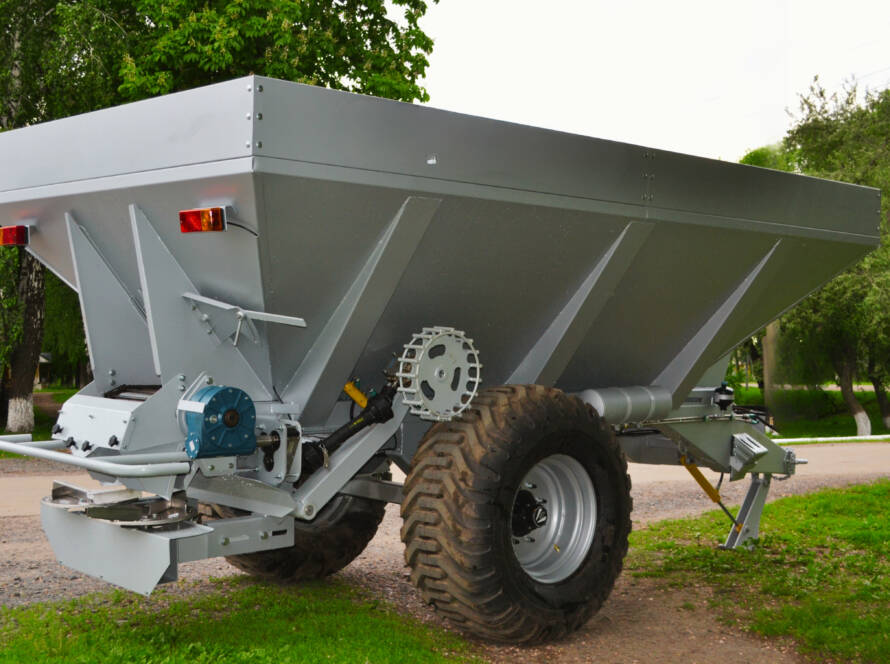

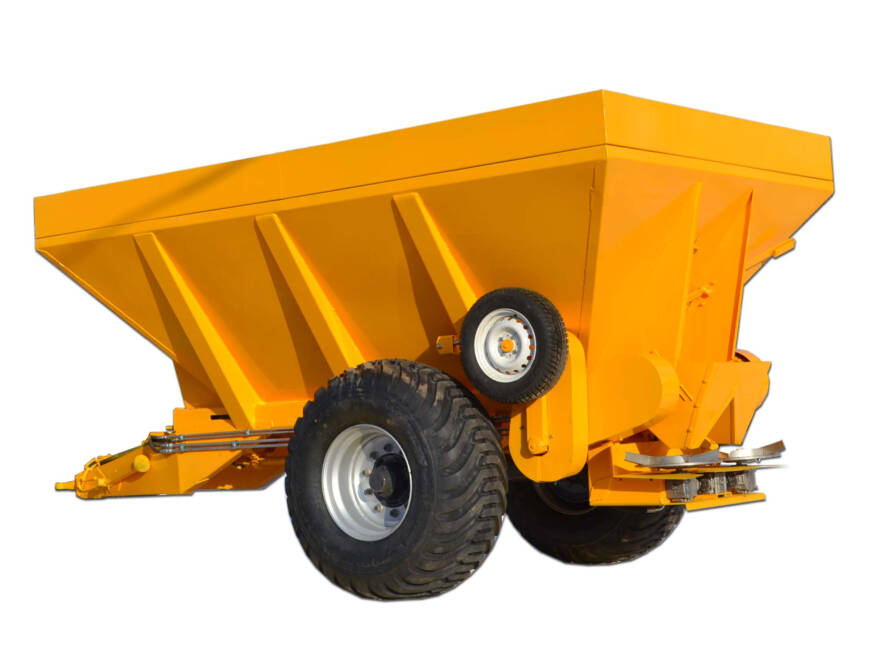

Mineral fertilizer spreader RMD-6
Mineral fertiliser spreader with hydraulic feeder drive and electronic feeder speed control system.
It is used for surface application of solid mineral fertilisers, lime spreading and chicken manure.
The BRAVO 400 electronic system (ARAG) controls the autonomous hydraulic system of the spreader depending on the preset dose of mineral fertiliser. It consists of a hydraulic pump (driven from the tractor's PTO), an oil tank, a hydraulic motor and a gearbox that drives the conveyor.
Technical data:
- wide tires reduce soil compaction;
- spread width of up to 24 m;
- spreading capacity - 50-2000 kg/ha
- capacity from 6 to 20 tons
- hydraulic drawbar support;
- stainless steel plates from Rauch Germany;
- air brake system;
- ADR axles (Italy);
- eyebolt (Scharmuller - Austria);
Technical data
| RMD-6 | |
| Total weight, kg | 8 200 |
| Own weight, kg | 2 200 |
| Payload, kg | 6 000 |
| Volume, m3 | 6 |
| Tire size | 550/60-22,5 |
| Axles, pcs. | 1 |
| Working width, m | do 24 |
| Spreading capacity, kg / ha | 50 – 2 000 |
| Tractor power requirement, hp | 80 |
| Dimensions, mm | |
| Trailer length, mm | 6000 |
| Width of trailer, mm | 2400 |
| Trailer height, mm | 2100 |
Additional equipment:
- stainless steel body;
- platform system;
- computer for accurate metering;
